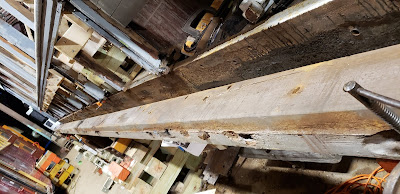

The thirty-seven-foot long, right side sill
of the 1912 Portland-Lewiston Interurban,
No. 14, Narcissus has been separated from
the channel steel beam that runs the full length of
the passenger compartment. Photo by PWM
The image above: The southern yellow pine sill and its channel steel beam partner were detached from the passenger compartment as a set and laid down with the exterior of the sill "facedown" on sturdy supporting blocks. The channel steel beam was then separated from the sill, exposing the inner sides of both the sill and the channel steel beam. The heavy channel steel beam was then flipped and its inside was moved toward the passenger compartment of the Narcissus. This image shows the inside face of the side sill facing up and the exposed rusted flat "backside" of the channel steel beam.
The Narcissus is currently being restored at the Donald G. Curry Town House Restoration Shop at Seashore Trolley Museum in Kennebunkport, Maine. The Narcissus, along with nine other historic Maine railway vehicles, has been listed in the National Register of Historic Places since 1980. The Narcissus was built in 1912 at the Laconia Car Company Works in Laconia, NH. The original order was placed in April, the same month the Titanic set sail and sank, and when Fenway Park, home of the Boston Red Sox, first opened. Portland-Lewiston Interurban passenger service commenced on July 2, 1914. Theodore Roosevelt was a passenger on the Narcissus on August 18, 1914.
The Portland-Lewiston Interurban ended electric railway service, eighty-five years ago on June 28, 1933. J. Henri Vallee purchased the body of the Narcissus, minus all the mechanical and electrical components, in the late '30s for use as the family summer camp in Sabattus, Maine. The Narcissus arrived at the Seashore Trolley Museum on October 31, 1969. Forty-nine years later, we are making major progress in the restoration of this historic Maine transportation icon. This blog post shares information about the single most challenging phase of the restoration to date, the replacement of the southern yellow pine side sills and the channel steel beams that the side sills are encased in.
With the right side sill removed, inside facing up, and
separated from the rusted channel steel beam, the magnitude
of the years of wood decay is clearly evident. Many years
ago a repair was attempted at this point in the sill
which proved less than adequate. Notice the "patches" of
layered rust Photo by PWM
Jones & Laughlin, the name of the company that
made the channel steel originally for the Laconia
Car Company Works is clearly visible on the
inside of the channel steel beam. Jones &
Laughlin was also clearly visible in the
steel I-beams that run down the center
of the forty-seven-foot-long interurban,
Narcissus. Photo by PWM
Below is an edited video of the sill & channel removal created by Ernie Eaton
This bucket contains many patches of layered rust
from the steel channel. Photo by PWM
The thickness of the layers of rust attached to or
that fell from the channel steel was remarkable.
Photo by PWM
Water damage took its toll on places along the
thirty-seven-foot southern yellow pine side sill from the right
side of the Narcissus. Photo by PWM
There are places on the channel steel that rusted
away totally. Photo by PWM
This a classic case where looks can be deceiving. Early in the
assessment processes, there was speculation that the sills/
channel steel beams were in remarkably good condition and
may only require relatively minor repairs. At worst, the
channel steel beams might need to be replaced.
Photo by PWM
As the assessment process advanced, evidence started
building in favor of the need to examine the sills and channel
beam much more closely.
As various metal components were being removed,
the evidence clearly pointed to the need for a more aggressive
examination of the channel steel beams and sills.
Photo by PWM
Here, volunteer, Tom Hughes is digging deeper into the
buildup of rust along the length of the right side channel
steel beam and the flooring of the smoking compartment.
Photo by DGC
More tell-tail signs that there were "issues" that warranted
further inspection. Only by removing the side sill and
channel steel beam could a truly proper assessment be done.
Photo by PWM
View of the ends of the right sill and the channel
steel beam at the No. 2 end. photo by PWM
Remarkably, only along a short segment of the
edge of the floorboard base in the smoking
compartment is there any wood damage. And
the damage is minimal. Notice how tight the
growth rings are seen on the end of the side sill
compared to the rings on the 4 x4s below the
sill. Finding old-growth southern yellow pine
to replace the two-side sill of the Narcissus
will be challenging. Photo by PWM
The deterioration of the right sill in areas such as the one
seen above results in this sill being damaged to the point
where it cannot be repaired for use in the restoration of the
Narcissus. Sections of the sill that are in good condition will
be measured for possible use to replace deteriorated
vestibule crossbeams. Photo by PWM
Damage to the sill
areas has compromised the structural integrity of the sill.
Photo by PWM
The challenges to removing nuts and bolts that
have been in place for as long as one
hundred and six years were many. Various
means of removal were applied.
Photo by PWM
Hundreds of nuts and bolts were removed.
The removal of most of the bolts securing the
side sills to the underframe required creativity
on the part of Ernie Eaton, the lead restoration
technician. He fabricated a bolt removal
device that would feature a 20-ton hydraulic
jack. This specialty tool proved very effective.
Photo by PWM
.
Theodore Roosevelt on the Narcissus when addressing
The layers of rust continued to build upon
the shaft of the body of the bolts, expanding
outward a little more each year, tightening
its grip on the bolts housed in the sills, making
the bolts nearly impossible to extract by the
more conventional methods.
If the bolt body twisted and snapped free, that was actually
preferable to most extraction alternatives. Photo EE
A small representation of the hundreds
removed. Photo by PWM
The left side sill seen here has had its bolts removed and is
ready to be detached from the passenger compartment with
its channel steel beam firmly attached. Photo by PWM
The left sill side has many of the telltale signs
that the right sill had that led to an area with
major sill damage. We expect the same findings
on the left sill once removed and the channel
beam is removed. Photo by PWM
An interesting observation. The damaged areas
in the right sill were located in the area
below where a double vertical stud was in
place, leading Ernie to surmise a steady water
flow along the inside of the vertical stud.
Further research and assessment to
follow. Photo by PWM
